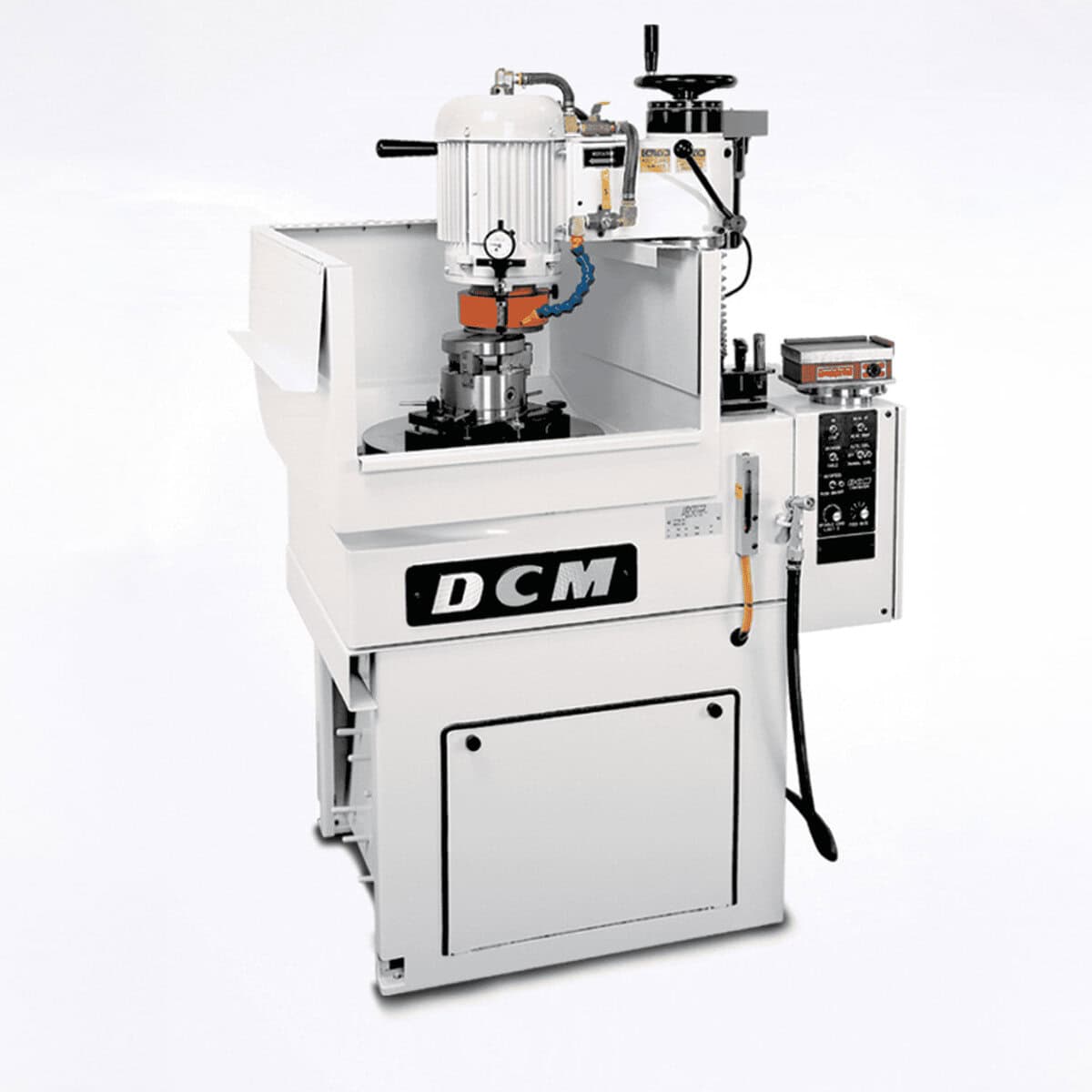

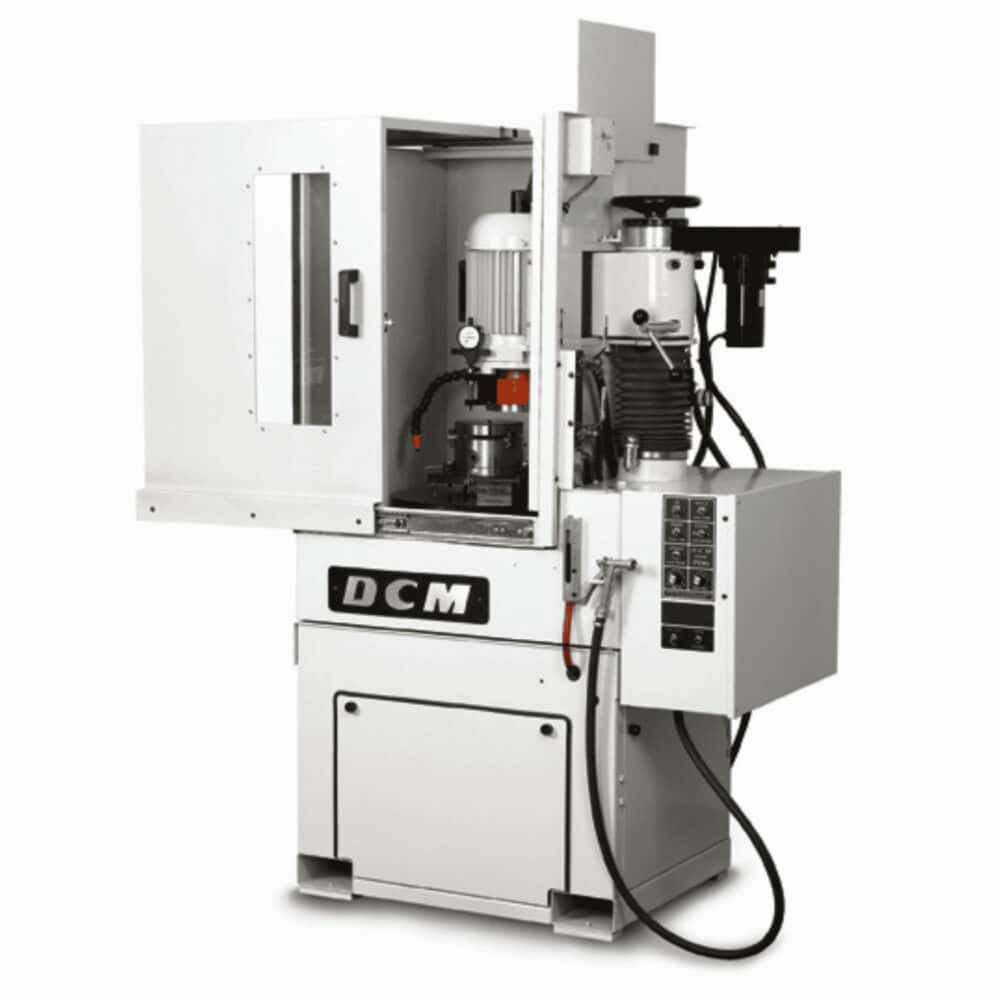

PDG Punch & Die Grinder
The Punch and Die Grinder (PDG), a Rotary Table Surface Grinder, is primarily dedicated to the sharpening of turret press tooling, but also includes the sharpening of small progressive dies. DCM Tech’s Punch and Die Grinder is a turnkey package with autofeed control, self dressing CBN abrasive, through spindle coolant and universal fixturing that accepts Amada, Trumpf, Salvagnini, Finnpower, Weideman, Whitney, and other style tooling. Sharpen large station dies and rooftop/shear angle tooling up to 10 degrees with the standard fixturing package. Typical grind time is less than 5 minutes.
Look to the PDG Punch and Die Grinder for:
- Reduced replacement tooling costs
- Reduced or eliminate deburring operations
- Gained labor efficiencies
- Payback period as soon as one year
Grinding Applications
- Sharpen Turret Press Tooling
- Regrind Carbide Pump Seals
- Grind Carbide Tooling
- Sharpen Ironworker Tooling
- Sharpen Rooftop Punches
- Sharpen Progressive Dies
- Regrind Dies Sets
- Debur Stripper Plates
Machine Specifications
- 5 hp Grinding Spindle Motor
- Universal Fixturing with Interchangeable 3 Jaw Chuck and Optional Permanent Magnet
- Autofeed Control
- 18″ Rotary Table
- 15 Gallon Recirculating Coolant System w/Basket Style Coolant Filtration
- Dimensions 26″ x 30″ x 60″
- Weight 1500 lbs
- CE Mark PDG Available
Standard Abrasive
- 20-08238-070-80, 6″dia. Self-Dressing CBN Straight Wheel
Provides aggressive material removal rates and a high-quality surface finish
Before you decide, our Engineering Team will validate the performance of any DCM style grinder on your specific material. We invite you to send us a sample of your material or come visit our factory to run the machine and see the results firsthand
After you purchase, a Technical Specialist from DCM will come to your facility to set up the machine and train your technical staff and machine operators.
As a DCM customer, you can count on the full support off our Technical Specialists and Engineering Team when you need it. If you have any questions our reliable team will make sure you get the answers you need, when you need them.
