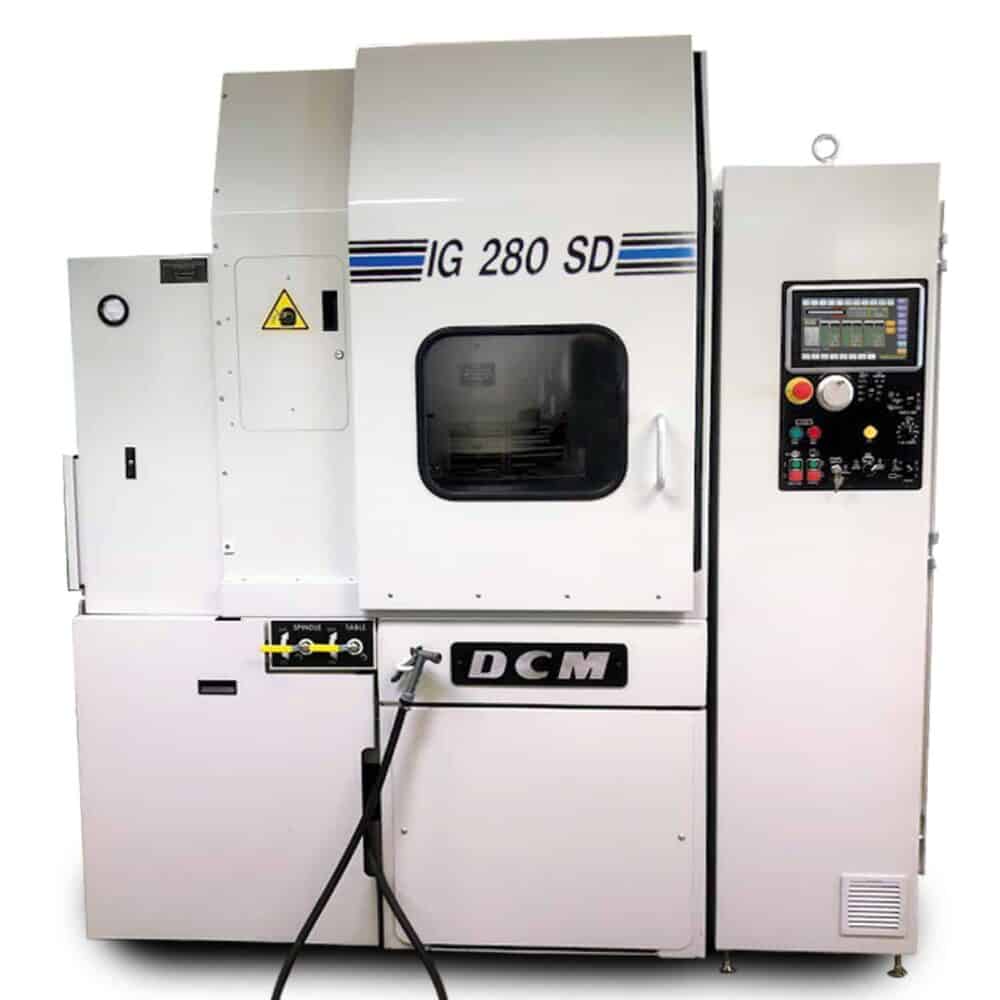

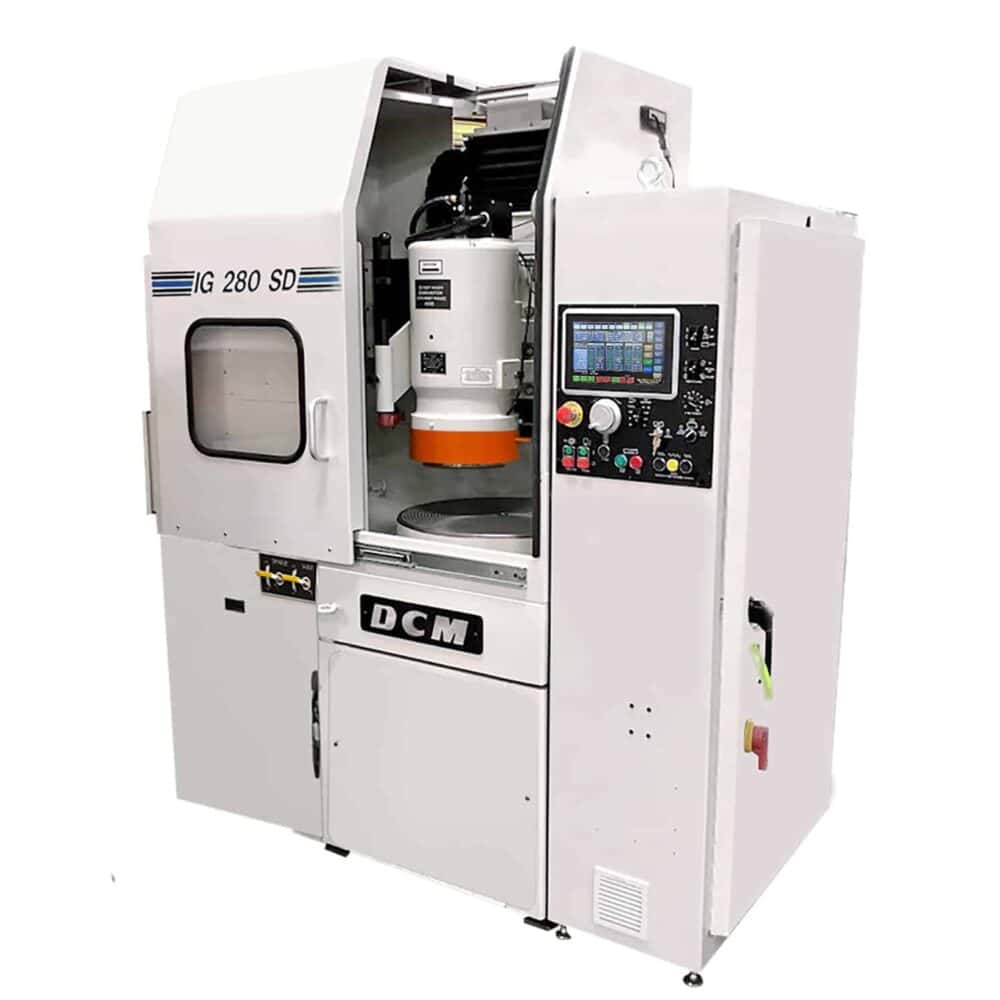

IG 280 SD Rotary Surface Grinder

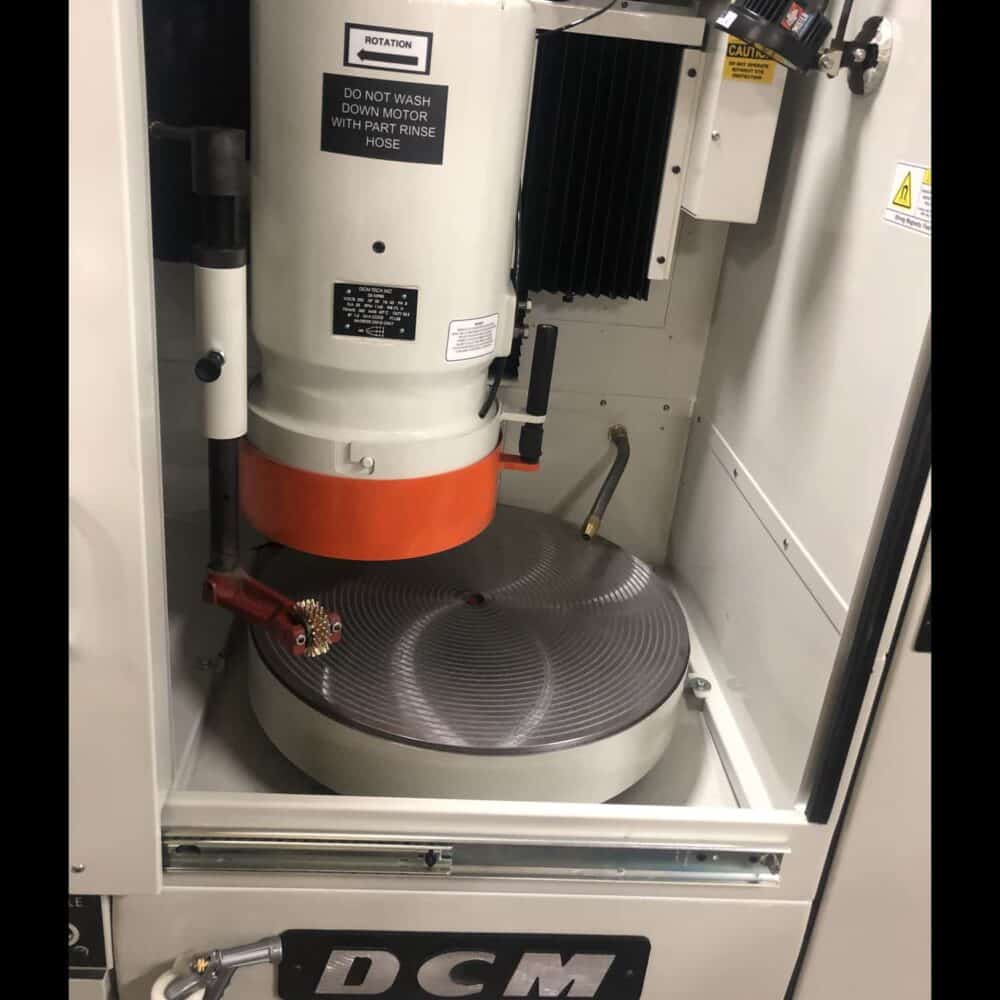

- 24″ variable strength electromagnetic chuck with auto demag cycle
- 20HP variable speed grinding spindle motor
- Thru-spindle vacuum/pressure feed

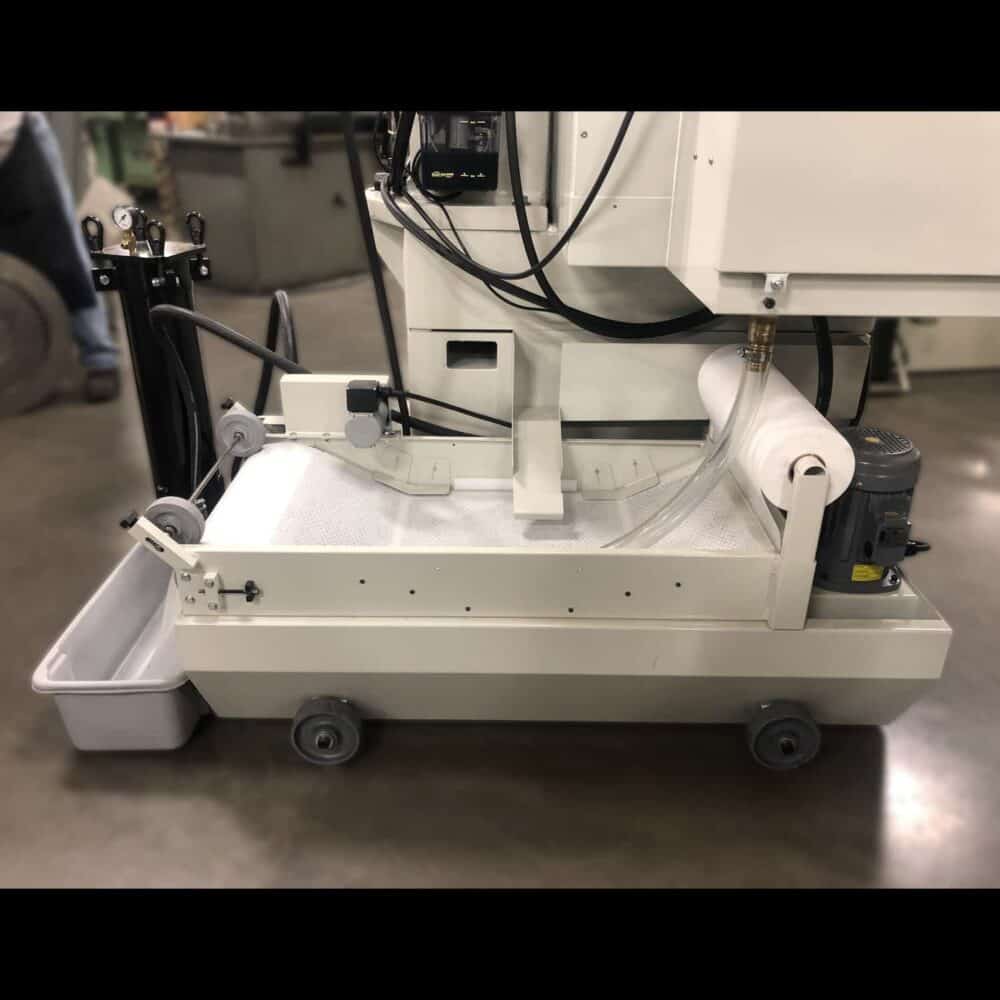

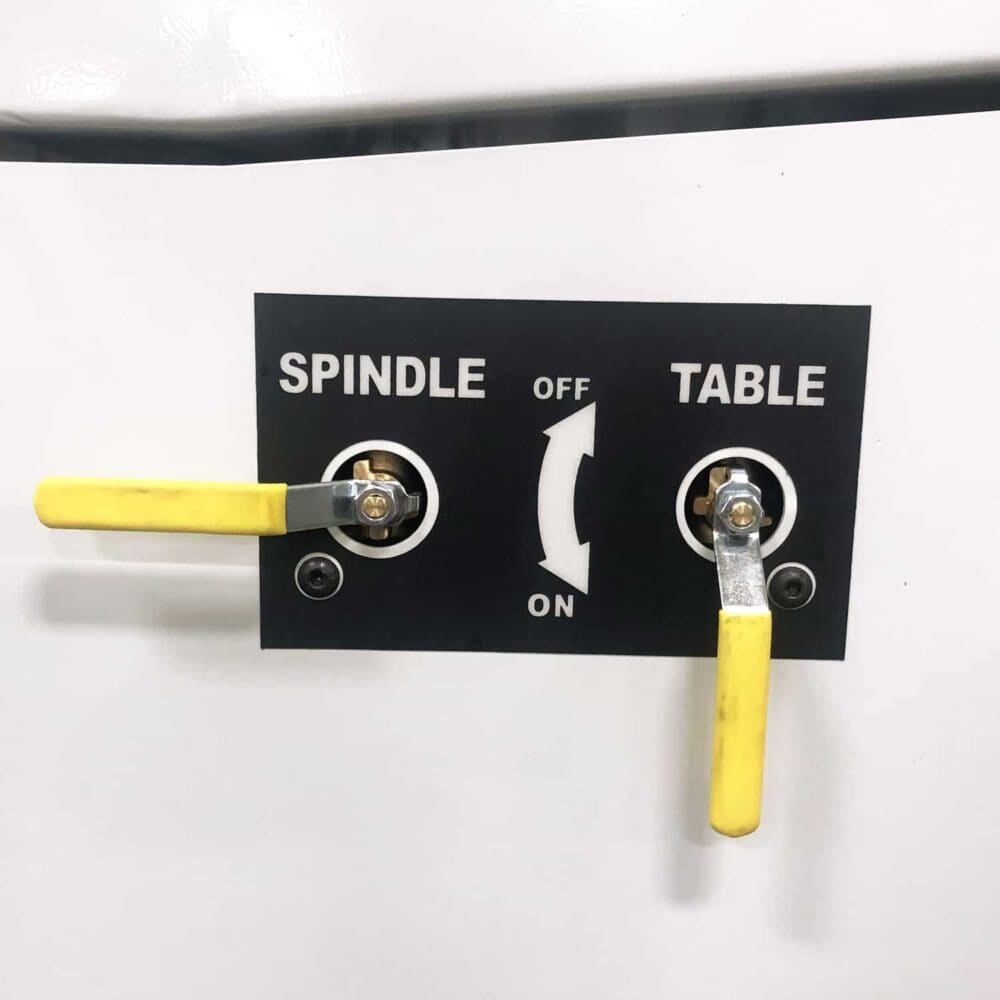

- Integral air mist collection and coolant flow systems for clean and consistent grinding

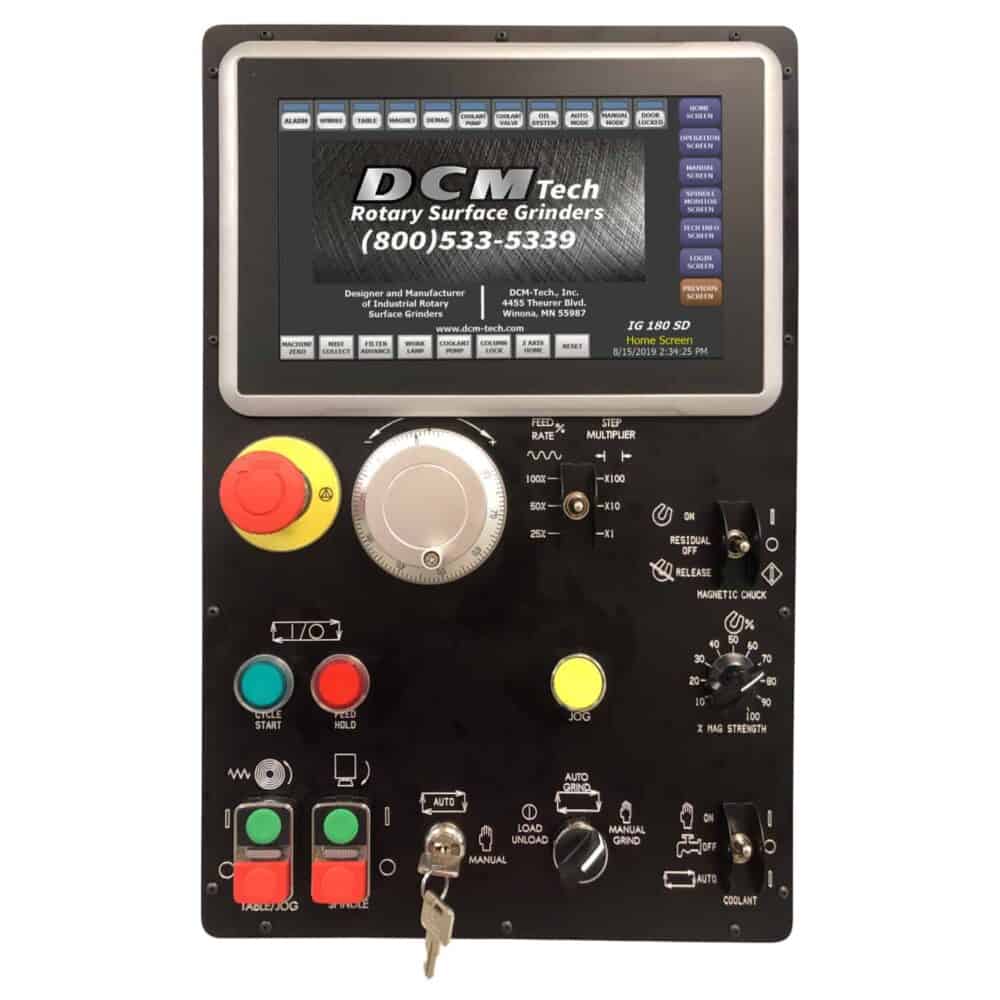

- Programmable touch screen HMI controls
- Manual pulse generator for precise Z-axis positioning
- Internal memory for saving grind process recipes to aid in quick changeover
- Password protection and operator lock-out features
- Automatic routine maintenance reminders
- 76″ x 64″ Footprint
Countless customization options supported by an in-house engineering team ready to build the perfect machine for your application!
Versatile. Precise. Efficient.
An exceptional machine from our line of rotary surface grinders. The IG280SD is designed with glass, ceramic, carbide and crystal fabrication in mind. It can be used in any low, mid or high volume applications. The programmable control saves grind parameters by part number for repeatable process automation. The servo driven Z-axis delivers true feed rates and repeatable positioning. An electromagnetic rotary chuck with electronic sensed demag is standard while optional configurations may include mechanical, vacuum, pneumatic or hydraulic work-piece fixturing.
Grinding Applications
DCM grinders outperform conventional surface grinders and are efficient for removing large amounts of material, while maintaining close tolerances and reducing process time. Features such as variable feedrate & spindle speed, single or multi-step grinding, and easily programmable grind processes make this machine an ideal platform for processing a wide range of materials.
Materials
- Ceramics
- Silicon Nitride, Zirconia, Alumina, Carbide, Silicon carbide (SiC), Tungsten, and other compounded materials
- Carbide
- Ceramic
- Copper
- Aluminum
- Cast Iron
- Nitrided Steel
- Crystalline Materials
- Quartz, Fused Silica, Glass, Sapphire, Zinc Selenide, Zerodur, Silicon
- Tool Steel
- Titanium
- Neodymium
- Ferrite
- Composites
- Magnetic Materials
Applications
- Fixture & die preparation
- Grinding glass plates to thickness
- Crystal grinding
- Solenoids
- Silicon plates, ceramics, glass, and sapphire
- Regrinding bearing surfaces
- Grind prep before lapping & polishing processes
Specifications
| Motors | |
|---|---|
| Grinding Spindle Motor | 20HP, 200 – 2330rpm |
| Rotary Table Motor | 1HP, 5 – 70rpm |
| Servo Column Motor | 2KW |
| Coolant Pump | 3/4HP, 45gpm |
| Table | |
| Diameter | 24″ |
| Table Features | Thru-spindle vacuum/pressure feed |
| Variable strength 3/8″ fine pole electromagnetic chuck | |
| Custom Options Available: | 18″ diameter table |
| T-slot or drilled for custom fixture mounting | |
| Capacity | |
| Max Swing Diameter | 27″ |
| Max Part Height | 11″ with segmented wheel |
| Max Part Height | 12″ with 2A2T wheel |
| Grinding Wheel Hub Options | |
| Segmented Wheel Hub Kits | 12″ or 15″ diameter |
| 2A2T Ring Wheel Hub | 12″ diameter |
| 6A2 Wheel Hub | 8″ diameter |
| Cortland Chuck | 12″ or 15″ diameter |
| Feed System | |
| Servo driven Z-axis with precision ballscrew and encoder | |
| Feedrate variable from 0.0006 IPM to 0.1000 IPM | |
| DC motor driven Y-axis | |
| Electrical Requirements | |
| 230V, 50/60Hz, 3 phase, 77.71 FLA | |
| Consult DCM Engineering regarding operation on other voltages or other options | |
| Dimensions | |
| 80″ wide, 68″ deep, 90″ high | |
| Weight | |
| 7,200lbs (estimated) |
Before you decide, our Engineering Team will validate the performance of any DCM style grinder on your specific material. We invite you to send us a sample of your material or come visit our factory to run the machine and see the results firsthand
After you purchase, a Technical Specialist from DCM will come to your facility to set up the machine and train your technical staff and machine operators.
As a DCM customer, you can count on the full support off our Technical Specialists and Engineering Team when you need it. If you have any questions our reliable team will make sure you get the answers you need, when you need them.
