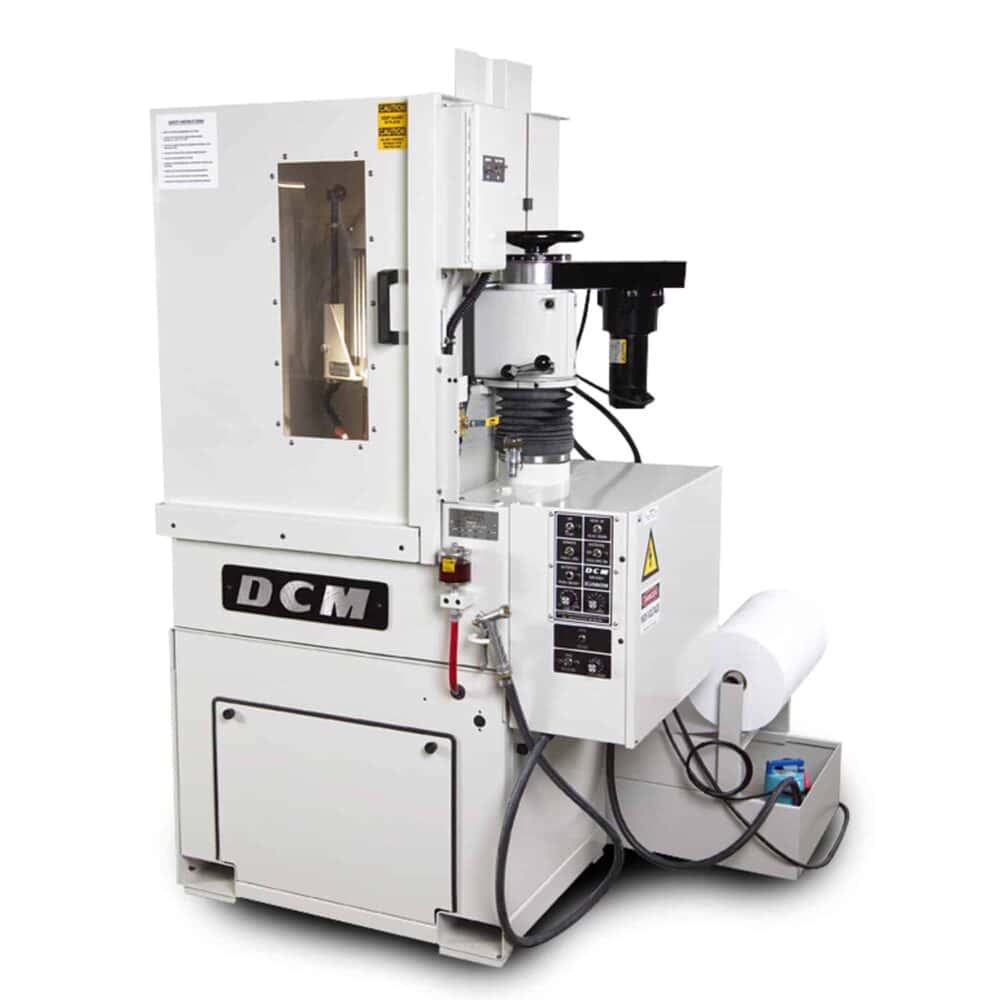

IG 080 M Rotary Surface Grinder
- 18″ variable strength electromagnetic chuck with auto demag cycle
- 10HP grinding spindle motor
- Optional full enclosure to aid in keeping a clean shop environment
- Graduated feed dial for setting feed amount and grind depth readout
- Rapid head positioning

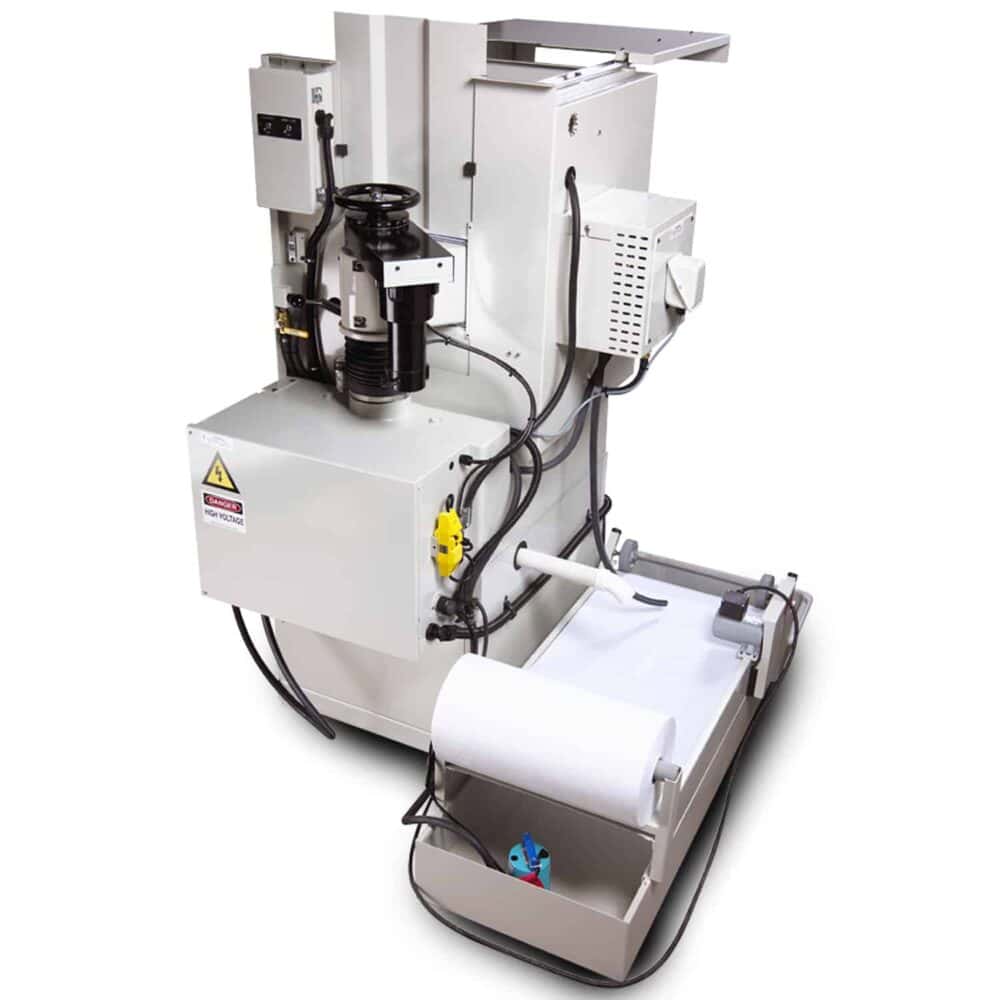

- 15 gallon coolant capacity w/ basket style coolant filtration
- Autofeed control technology
- Weight: 1,800 lbs (estimated)
- 36″ x 36″ footprint
Countless customization options supported by an in-house engineering team ready to build the perfect machine for your application!
Easy to Use. Fast. Precise.

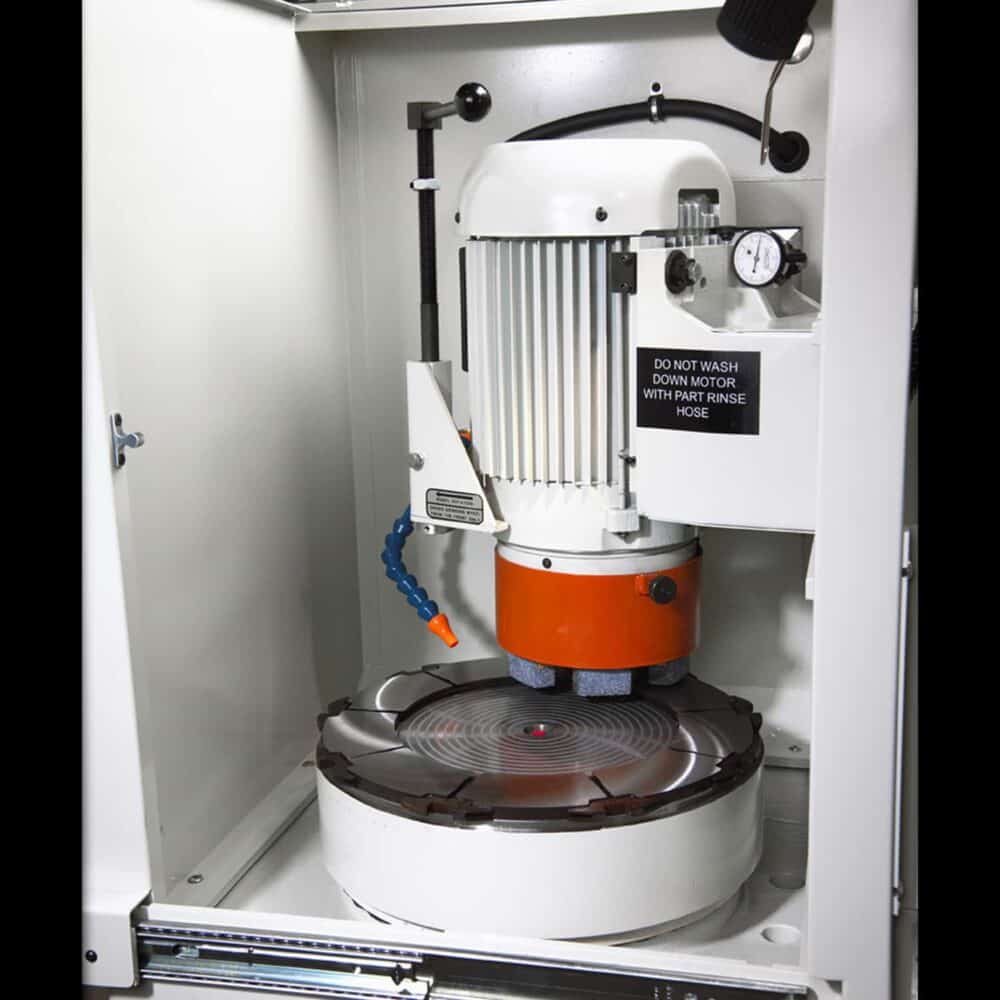

The Model IG 080 M has all the benefits of a BIG rotary surface grinder but with a small shop footprint. The 18″ rotary table and 10HP grinding spindle motor provide strong straight forward grinding performance for rough grinding as well as mid-tolerance work.

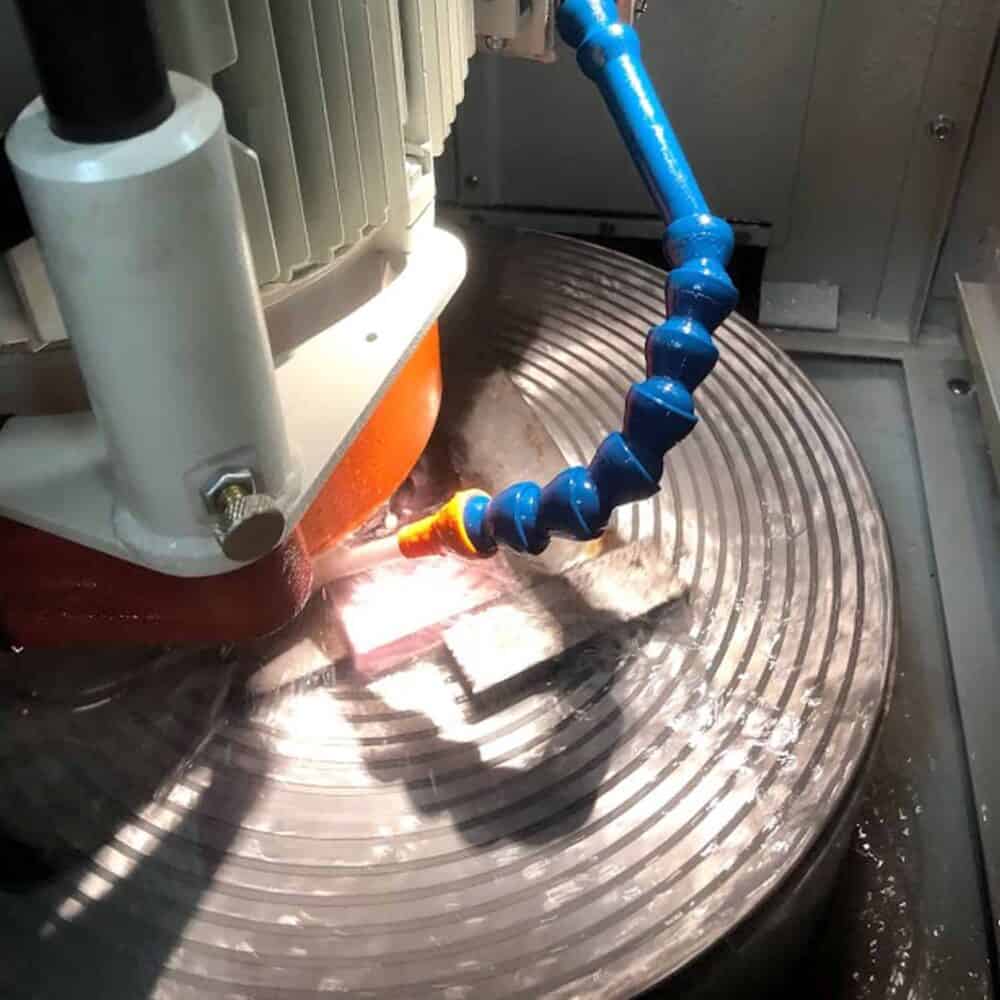

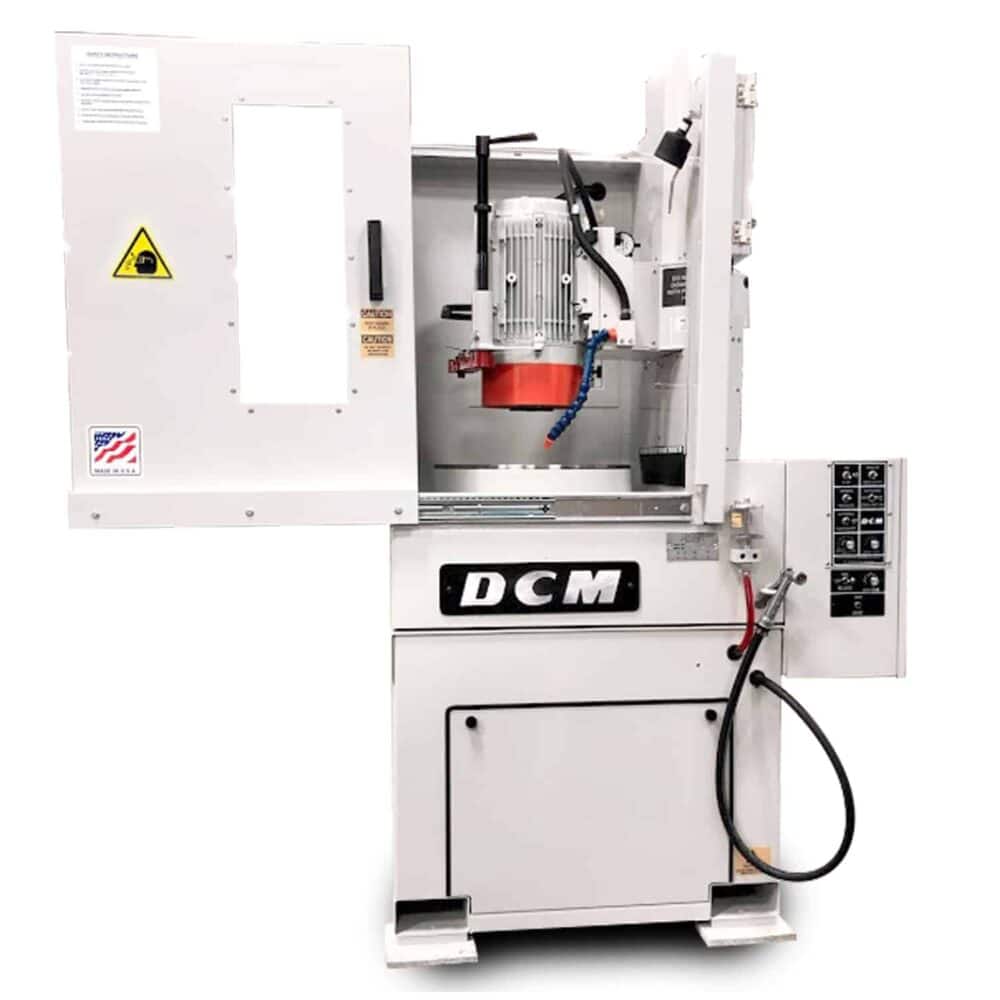

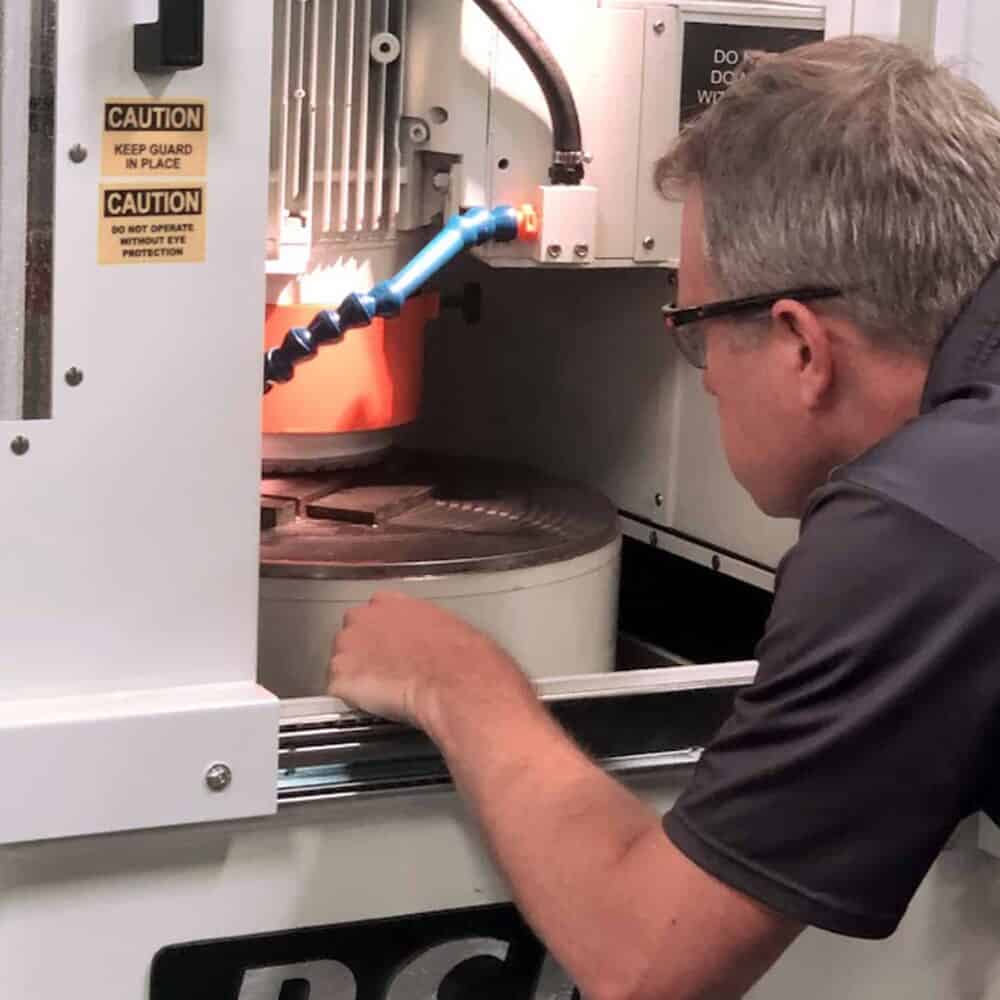

This machine is available with a low open or fully enclosed shroud based on your preference. A 15 gallon coolant tank and 20gpm coolant pump filter and collect coolant for cleaner, consistent grinds. Ask about custom workholding systems to fit your fixturing needs.
Grinding Applications
DCM grinders outperform conventional surface grinders and are efficient for removing large amounts of material, while maintaining close tolerances and reducing process time.
Materials
- Ceramics
- Silicon Nitride, Zirconia, Alumina, Carbide, Silicon carbide (SiC), Tungsten, and other compounded materials
- Carbide
- Ceramic
- Copper
- Aluminum
- Cast Iron
- Nitrided Steel
- Crystalline Materials
- Quartz, Fused Silica, Glass, Sapphire, Zinc Selenide, Zerodur, Silicon
- Tool Steel
- Titanium
- Neodymium
- Ferrite
- Composites
- Magnetic Materials
Applications
- Resurfacing aircraft brake rotors
- Grinding circular wood milling tools to thickness
- Sharpening stamping tools
- Meat plate sharpening
- Fixture & die preparation
- Grinding prep before lapping & polishing processes
- All flat grinding applications
Specifications
| Motors | |
|---|---|
| Grinding Spindle Motor | 10HP, 1800rpm |
| 3600rpm model available | |
| Rotary Table Motor | 1HP, 34rpm |
| Powered Head DC Motor | 1/2HP |
| Coolant Pump | 20gpm |
| Table | |
| Diameter | 18″ |
| Table Features | Thru-spindle vacuum/pressure feed |
| Variable strength fine pole electromagnetic chuck | |
| Capacity | |
| Max Swing Diameter | 24″ |
| Chuck Work Load | 300lbs, centered |
| Max Wheel to Table Clearance | 7″ with 6A2 wheel |
| Grinding Wheel Hub Options | |
| Type 6 or Type 11 Wheels | 3″ – 8″ diameter |
| 6A2 and Cup Wheels | 6″ – 10″ diameter |
| Segmented Wheel Kit | 8″ diameter |
| Feed System | |
| Acme leadscrew preloaded bronze feed nut | |
| Manual handwheel with .0010″ graduations, .2000″ per handwheel rotation | |
| DCM autofeed system | |
| Electrical Requirements | |
| 230V / 460V, 60Hz, 3 phase, 40 amp, 37 FLA | |
| Consult DCM Engineering regarding operation on other voltages or other options | |
| Dimensions | |
| 60″ wide, 36″ deep, 72″ high | |
| Weight | |
| 2,400lbs (estimated) |
Before you decide, our Engineering Team will validate the performance of any DCM style grinder on your specific material. We invite you to send us a sample of your material or come visit our factory to run the machine and see the results firsthand
After you purchase, a Technical Specialist from DCM will come to your facility to set up the machine and train your technical staff and machine operators.
As a DCM customer, you can count on the full support off our Technical Specialists and Engineering Team when you need it. If you have any questions our reliable team will make sure you get the answers you need, when you need them.
