DCM-Tech has over 40 years of experience in the design and manufacture of rotary surface grinders. If you are in need of a rotary grinder for production, job shop, or lab use, consider a new DCM machine.

Our rotary surface grinders have evolved by meeting the needs of customers in fields as diverse as electronics, aerospace, photonics, and metalworking. The surface finish on a DCM grinder is similar to Blanchard® grinders by Bourn & Koch, but that is where the similarities end.

Our machines are utilized in production and maintenance of tooling, bearing parts, seals, spacers, pump components, motor parts, aircraft and automotive brake rotors, carbide tooling, prisms, lenses, wafers, windows, metrology part prep and much, much more.

DCM equipment is made in Winona, MN and sold and serviced factory direct, worldwide.

  • IG 080 M

    • 18" Table Diameter
    • 10HP Grinding Spindle Motor
    • 24" Max Swing Diameter
    • 7" Max Part Height
    • 36" x 36" Shop Footprint
  • IG 180 SD

    • 18" Table Diameter
    • 10HP Grinding Spindle Motor
    • 24" Max Swing Diameter
    • 7" Max Part Height
    • Small Shop Footprint
  • IG 280 SD

    • 24" Table Diameter
    • 20HP Grinding Spindle Motor
    • 27" Max Swing Diameter
    • 12" Max Part Height
    • Easy to Operate Controls

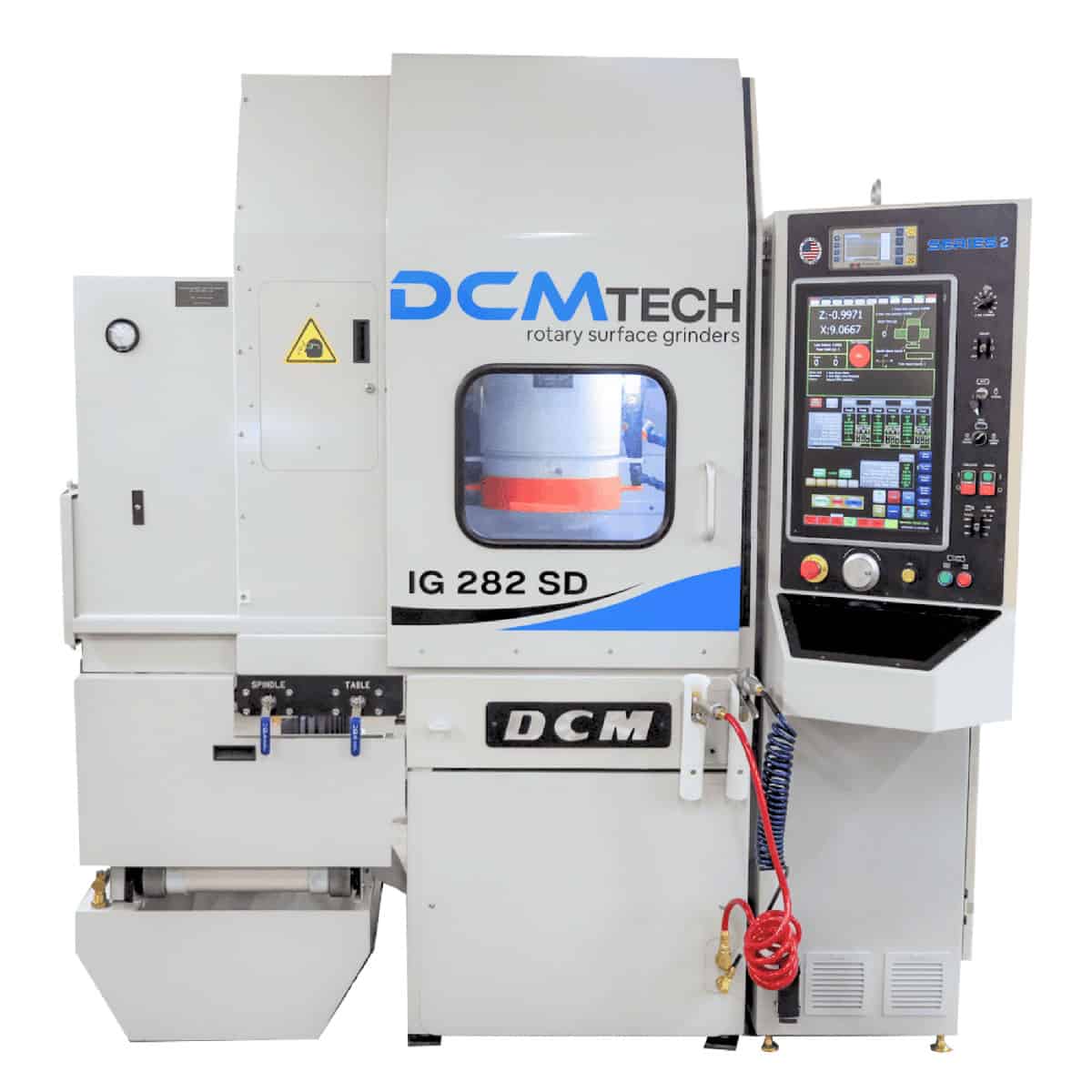

  • IG 282 SD

    • 24" Table Diameter
    • 20HP Grinding Spindle Motor
    • 27" Max Swing Diameter
    • 12" Max Part Height
    • Precision X-Axis Cross Slide
  • IG 380 SD

    • 36" Table Diameter
    • 30HP Grinding Spindle Motor
    • 40" Max Swing Diameter
    • 11" Max Part Height
    • Fully Enclosed Clean Grinding

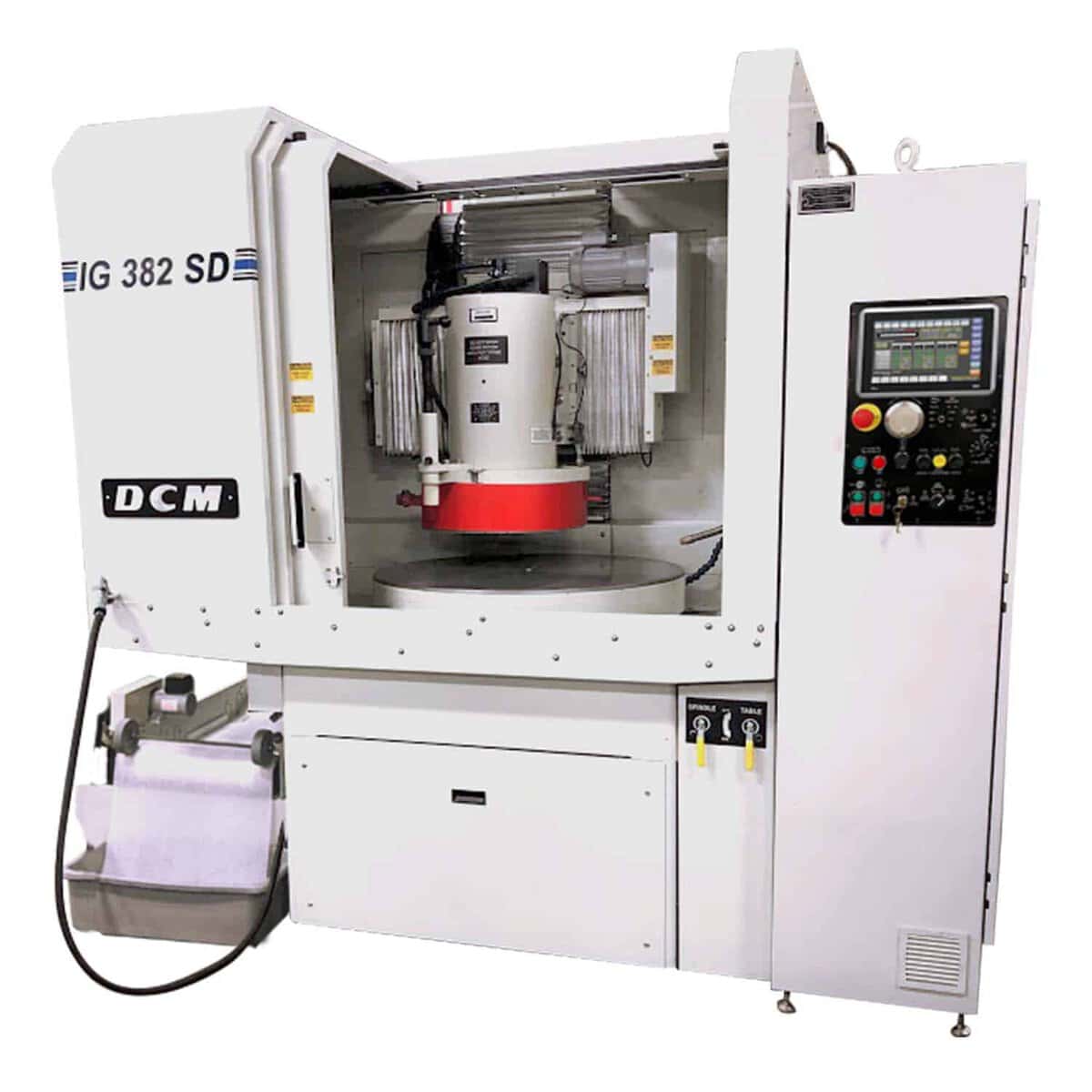

  • IG 382 SD

    • 36" Table Diameter
    • 30HP Grinding Spindle Motor
    • 40" Max Swing Diameter
    • 11" Max Part Height

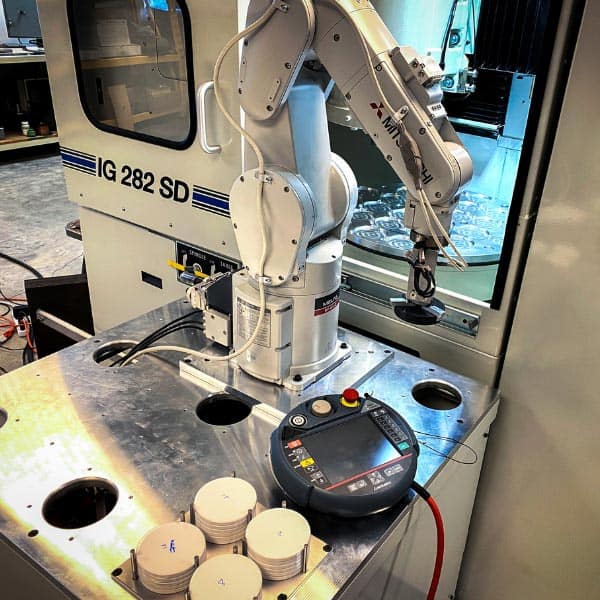

    • Automation Compatibility
  • IG 480 SD

    • 48" Table Diameter
    • 50HP Grinding Spindle Motor
    • 52" Max Swing Diameter
    • 12" Max Part Height
    • Perfect for Large Jobs
  • IG 482 SD

    • 48" Table Diameter
    • 50HP Grinding Spindle Motor
    • 52" Max Swing Diameter
    • 12" Max Part Height
    • Precision Cross Slide

080 / PDG

Rotary Surface Grinder

  • Constant speed rotary table.
  • Constant speed spindle.
  • Power column & solid-state auto feed.
  • Electromagnetic chuck or optional T slot table.
  • Optional: Integral coolant filtration system.
  • Easy to operate push button controls.
  • 1 automatic grind mode with overload sensing.

180

Rotary Surface Grinder

  • Variable speed rotary table with electromagnetic chuck.
  • Variable speed spindle.
  • Z-axis servo drive.
  • Integral coolant filtration and mist collection systems.
  • Easy to operate touchscreen controls.
  • Manual pulse generator for precise Z-axis positioning.
  • Password protection and operator lockout.
  • 2 automatic grind modes.

80 Series

280, 380, 480

  • Variable speed rotary table with electromagnetic chuck.
  • Variable speed spindle.
  • Servo-driven precision control of both Z with absolute home positioning.
  • Integral coolant filtration and mist collection systems.
  • Easy to operate touchscreen controls.
  • Manual pulse generator for precise Z-axis positioning.
  • Password protection and operator lockout
  • 2 automatic grind modes
  • Additional options to customize and automate your machine, reach out to your Technical Specialist today!

82 Series

282, 382, 482

  • Variable speed rotary table with electromagnetic chuck.
  • Variable speed spindle.
  • Servo-driven precision control of both Z and X-axis with absolute home positioning.
  • Integral coolant filtration and mist collection systems.
  • Easy to operate touchscreen controls.
  • Manual pulse generator for precise 2-axis positioning.
  • Password protection and operator lockout.
  • 3 automatic grind modes.
  • Additional options to customize and automate your machine, reach out to your Technical Specialist today!

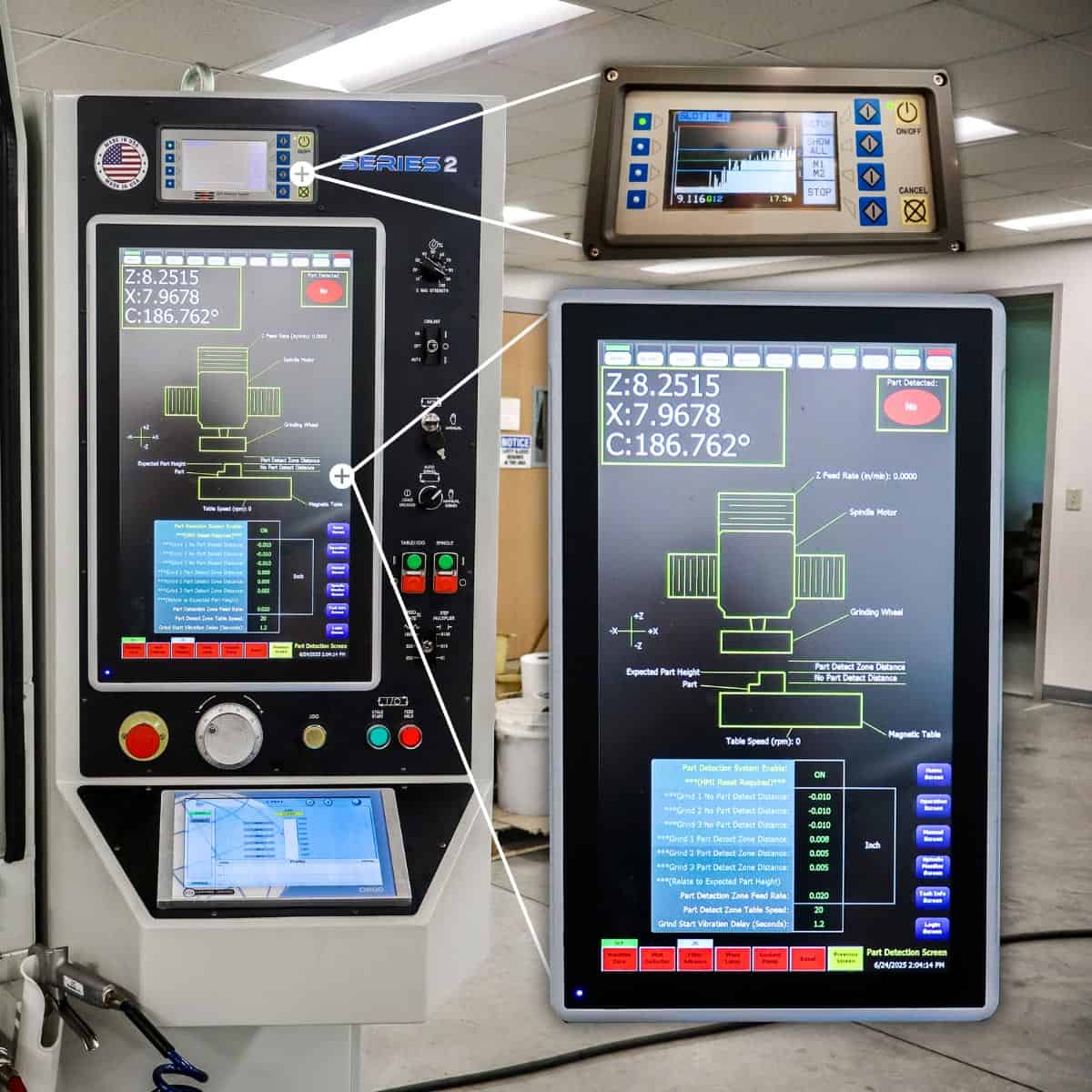

Grinding Machine Showing It'S Part Detection Capabilities On Screen

DCM Part Detection System

  • Auto-detect and grind
  • Ask us about auto-dress capabilities
  • Adjustable feeds & speeds
  • Available on all IG 82 series rotary surface grinders

Let’s Get Started

Let DCM Technical Specialists show you proven results.
