SG5100 Brake Rotor

DCM Tech’s SG 5100 Brake Rotor resurfaces light truck and automotive rotors to OEM or better finish and accuracy in minutes. Crosshatch ground finish provides a precision friction surface assuring optimum braking performance and brake pad life. Stock removal is minimum, keeping rotors in service longer, saving money and resources while providing a superior surface finish. Repair and Re-Use rather than replace while increasing productivity! Rotors can be resurfaced in as little as 5 minutes. Wet grinding eliminates airborne dust and provides consistent results.

Applications:

  • Light Truck and Automotive Brake Rotors
  • Flywheel Grinding (with optional tooling)

Machine Specifications

Electrical Requirements230V 3ph 60hz

115V 1ph 60hz

(Optional 208V 1ph 60hz)

Feed SystemsBi-directional manual feed.
Wheelhead Motor5 hp
Table Motor30 rpm, 1/4 hp
Floor space3′ x 4′
Shipping weight900 lbs.
Vertical Wheel Clearance8″
Maximum Workpiece Diameter16″



[sexybutton size="large" color="blue" target="_self" url="/literature-request-form-submit/" icon="noicon"]Request Product Brochure[/sexybutton]

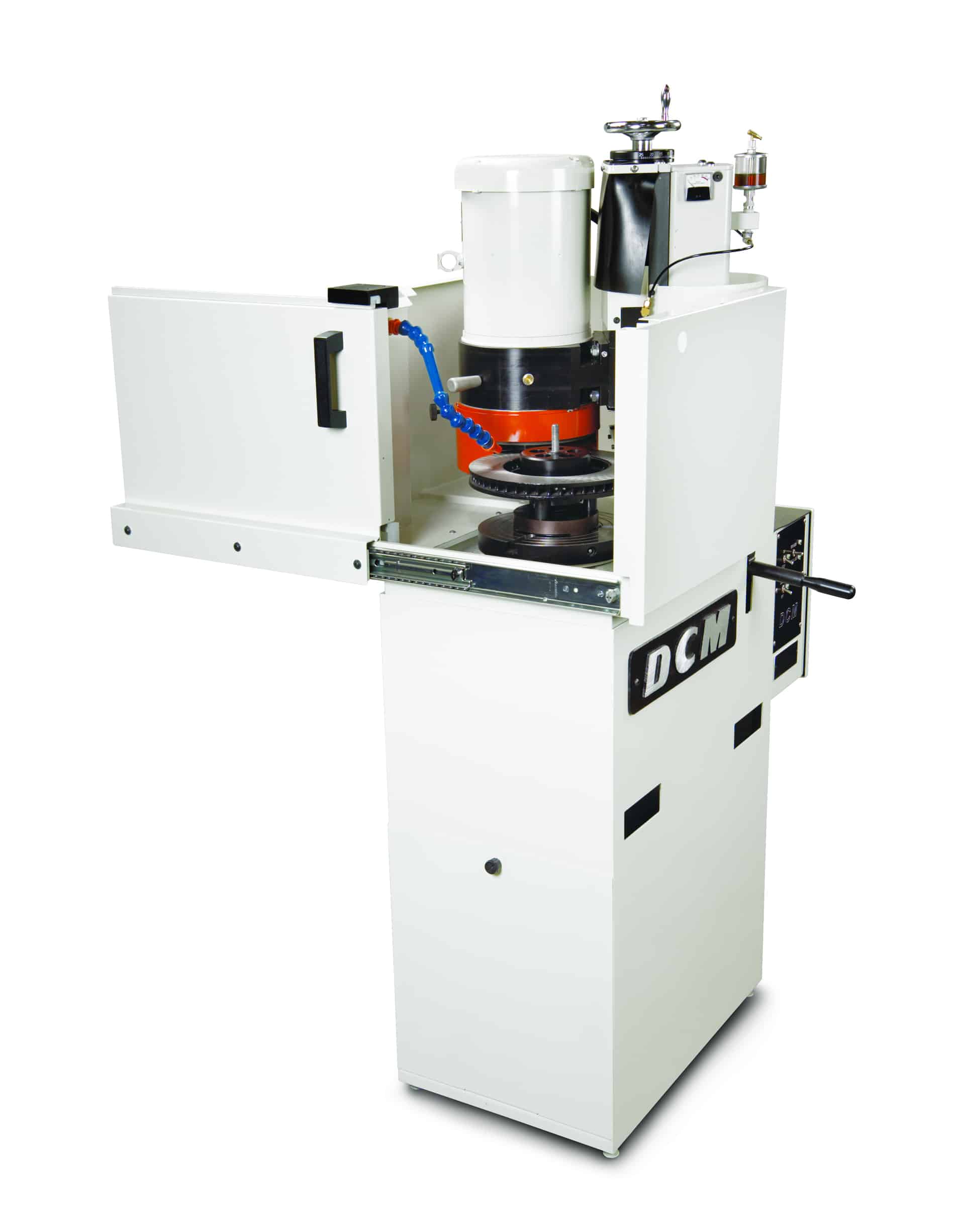

SG 5100 Brake Rotor Grinder
